Garden Planters Build Part 1

Garden Planters Part One

I have mass produced a whole load of parts using the dedicated mortiser and the router table for the framework of the planters. The material used was 44 x 44 (1 3/4" square  pre-milled meranti from a local wood supplier. I felt it was cheaper for them to supply the ready milled stock rather than me do it myself as there was quite a lot to do and not a lot of time to do it in.

Routing the legs showing the starting stop block
The mortises are 25 deep x 30 long (1" x 1.1/4") by 3/8" wide (the mortise bit is imperial!).

The plywood I'm using for the sides is a good quality external hardwood ply 1/2" nominal thickness which actually measures 11.35 mm.
I cut the slots using an 11mm routing bit that I have.

Routing the legs showing the stopping stop block
I also had to break out my excellent Record 778 rabbeting plane (rebate plane for us English people but I prefer rabbet) and took off a thin shaving all around the edges of the ply so they would drop in OK  I would have used the router but it was late last night and I didn't want to disturb the neighbours.

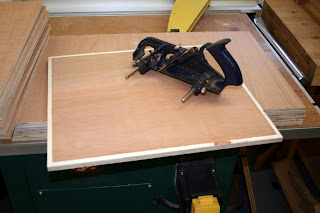

Record 778 rabbet plane forced into service
I have to say that this plane is superb and very easy/quick to use. Just keep the blade well honed and it will give many years of sterling use.

Dry fitting the parts
Then it just came to dry fitting everything. There are two cube boxes like this one and two larger rectangular boxes. I have ordered some tongue and groove Western Red Cedar to clad the boxes but the carcasses will be finished with some waterproof General Finishes Exterior 450 prior to the cedar being screwed on with stainless screws (no ring nails on this project as I don't want to risk splitting the sapele).

The base panels are to be made from 4" x 1" pressure treated softwood nailed in place with some stainless brads (yes I managed to get hold of a bunch of them :) )
