Shower Room Vanity Unit - Part 5 - The Web Frames

Web Frames in a cabinet play an important function. They add rigidity to the entire structure and they most importantly support the drawers. They also allow the drawers to pull out without tipping.
I decided to glue up the entire frame first of all and insert the webframes afterwards. This prevents any panic when glueing up and also ensures that the frame remains square.
Sketchup representation of the webframes
used on this cabinet.
The stock was again dimensioned and the joinery cut. The front are rear have slots cut in them and the sides have tenons cut on them. This forms the rectangle.
Single webframe

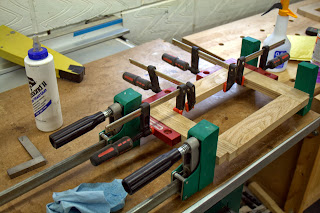

Webframe glue up

Cabinet glue up

Webframe glued in place
